| Hereby affirms that the following test are in strict accordance with US national standards. |
| Each buyer can test relevant parameters according the way we provide. |
| Test results turn out to be consistent with ours ,error is not more than 3%. |
| We test the Brightness Parameters of the Projector according to ANSI Standards. |
| First we will introduce the word "ANSI". ANSI is short words of "American National Standards Institute", founded in 1918. |
| American National Standards Institute\'s standards, the vast majority from the professional standards. On the other hand, professional associations, associations can also be based on existing national standards to develop certain product standards. ANSI standards are voluntary. |
| We will give you the two different result: American and Chinese Standards. They have the same test way. The difference is that the Chinese standard result are more than five times that of American if the light source is UHP Bulb, LED lamp\'s lumens is ten times than American. |
| Step 1: Adjust the brightness and contrast of the projector. Let the projector can distinguish eight different shades of gray color. Under the situation meet the ANSI standards requirements. Because blindly high brightness and contrast will make the image distortion. |
| Step 2: Show the White picture on the wall. Record the projection screen size. We will use the screen size to calculate the lumens later. |
| Step 3: Due to the characteristic of the projector, the middle part of the screen\'s brightness is greater than the surrounding parting. So we use the Illuminometer to record the different point on the screen. Then we will get the White Picture average Lux result for whole screen. |
| Step 4: Then copy the same method to get the whole Black Picture Average Lux result. Because we need reduce the Lux Produced by the environment. |
| Illumination is a unit of light intensity, its physical meaning is to illuminate the luminous flux per unit area, illumination unit is the number of lumens per square meter (Lumen), So we get lux (Lux) formula: 1Lux = 1Lumen / m2. |
| First,after we adjust the image to ANSI standards.And get the screen size from step 2: Height=1.25m, Width=2.16m. And get the white picture\'s average lux Ew=600.7 lux, Black picture\'s average lux Eb=33.4 lux. So the ANSI lumens result is Φ = (600.7 lux - 33.4 lux) x 1.25m x 2.16m = 1531.71 (ANSI lumens). And the Chinese lumens is four times more than ANSI result if the light source is UHP Bulb, so the Chinese lumens is 1531.7 x 4 = 6126.8 lumens. |
| Picture | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | Average |
| White | 562 | 624 | 574 | 613 | 622 | 544 | 600 | 661 | 607 | 600.7 |
| Black | 32.8 | 34.0 | 31.5 | / | / | / | 34 | 32.8 | 35.3 | 33.4 |
| Calculate Error |
| Because of the error of ± 3% of the illuminance of the measuring instrument itself, and the influence of using different ambient light, the final test results also have some errors. |
| If you think the one screen size is not accurate, you can change the projection distance to screen to have a different screen size. And copy the same steps to get the lumens with different screen size. At the end calculate the average lumens is done. |
| Sometimes the seller gives you the Lamp or Bulb\'s factory inspection ANSI lumens. But it is not the real lumens projection to screen. Because the light source inside the machine exist package lax, power instability, optical lens attenuation and other issues, it cannot be 100% projection to the screen. So we need to test out the true lumens to the screen. |

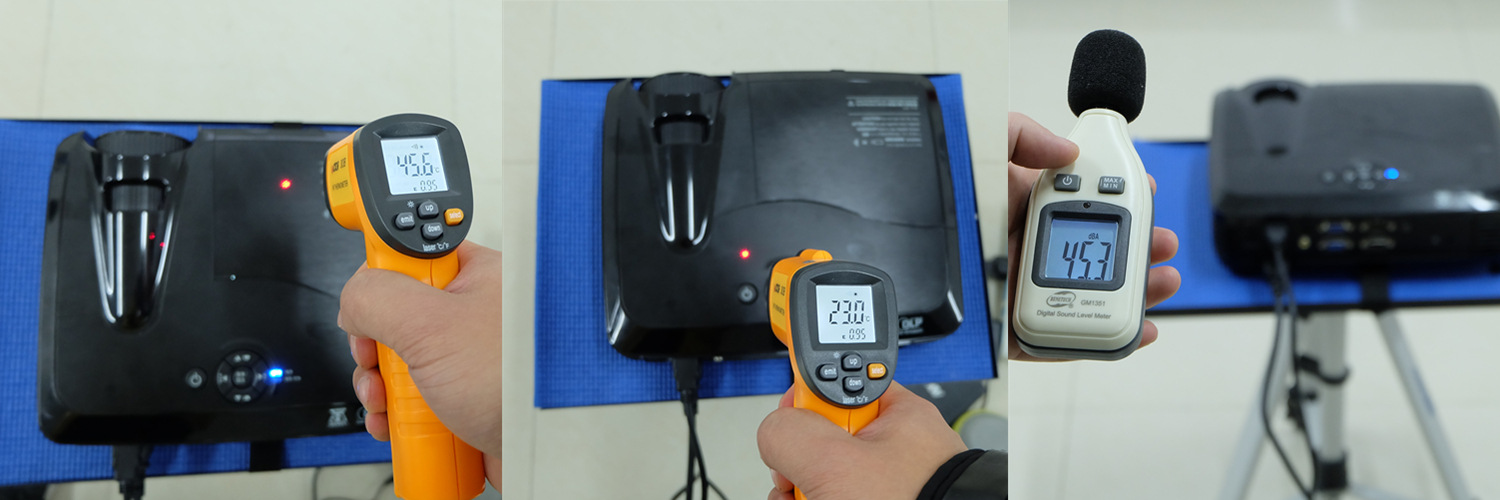

| After continuous working 2 hours. The projector\'s temperature will be higher. And the fan will work harder than beginning. It will make a louder noise. So we give the noise and temperature result after 2 hours continuous working. For C195 Short Throw 3D projector, it is built in Osram 240W UHP Bulb, so the fan noise and temperature will be a little difference than beginning. We can see the projector\'s body has different temperature from different position, if we test the position near to UHP Bulb, the temperature is 45.6℃.Because high brightness will produce higher temperature.And if we test the position a little far away from UHP Bulb,the temperature is 23.0℃, because it is built in the very good fans to cooling it.And the noise is 45.3 dB. |
